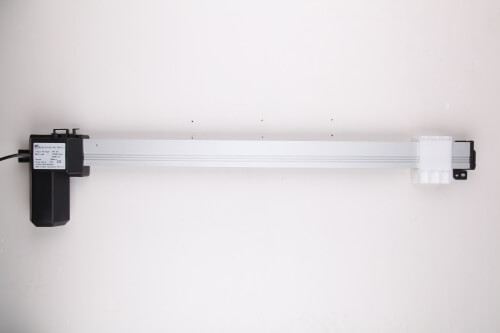

Track Linear Actuators
Specifications
Voltage: 24VDC 、12VDC Permanent Magnet Motor Drive
◇ Max Thrust: 6000N
◇ Duty cycle: 10%, comment: 2 minutes continuous work followed by 18 minutes rest
◇ Ambient temperature -5°C (23F) to +40°C (104F)
◇ High Strength Plastic Housing and Gears
◇ Elegant and compact design with small installation size
◇ Minimum Installation Size 157mm (±2mm)

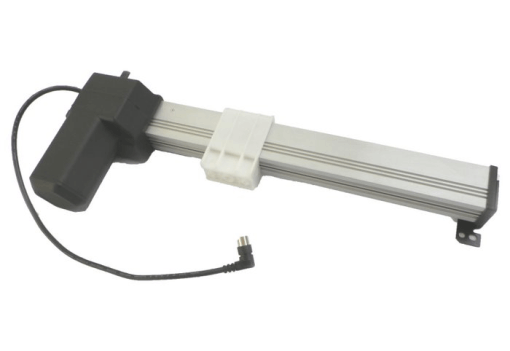

◇ Color: Black plastic housing, white slider and natural anodized Aluminum profile
◇ Built-in integral limit switch, not adjustable after leaving factory
◇ Standard protection class: IP 20
◇ Noise Level: Free load 48 dB
Load | Speed |
6000N | 4mm/s |
3000N | 8mm/s |
1500N | 16mm/s |
1000N | 20mm/s |
